MUNTERS HC-150R Desiccant Dehumidifier Triple Stack on Custom Frame for Sale

Munters HC-150 Desiccant Dehumidifier Triple Stack on Custom Frame HC150R

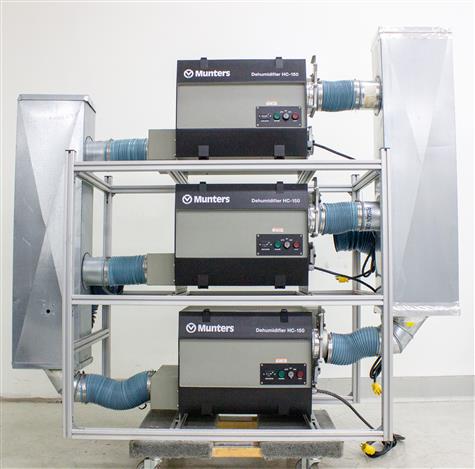

**This is a HC150R triple stack on custom aluminum frame with interconnected ducting system. (Each individual HC150 unit also available for purchase). All units are in very good condition and tested to specifications. Units have slight wear from normal use. Buyer can expect a working machine and 30-day warranty. See photos for details

(Please be advised that any warranty/guarantee/return policy provided from the seller is between the buyer and the seller only. Bid on Equipment is not and cannot be held responsible in any way. Please reference our Terms and Conditions for further information.)

Munters HC-150 is an off-the-shelf desiccant dehumidifier that combines state-of-the-art desiccant technology with dependability and long operating life for humidity control at virtually any temperature.

The dehumidifier is often used to maintain low humidity levels in environmental chambers and medium humidity levels in warehouses.

The small size and weight of the HC-150 makes it easy to install. The unit casing is manufactured of fully welded, strain hardened aluminum to ensure zero air leakage. Control is accomplished via a printed circuit board that is located behind an access panel for simple inspection and maintenance. Metal mesh filters are provided as standard on all HC units.

Durable unitized body with welded aluminum construction
Easy front accessible panel
Simple ductwork connections
Compact, low-profile design
Munters compact dehumidifier combines state-of-the-art desiccant technology in a self-contained unit to provide dependability and long operating life for humidity control at virtually any temperature. The HC-150 is perfect for product drying, mold and mildew control, corrosion protection, storage and condensation control, while providing an industry leading 1.7 lb. water/kWh* moisture removal efficiency.

Process air: Flow rate of 75-150 SCFM. 4.8 lb./hr.* moisture removal. Capable of processing saturated, conditioned or outside air. Industry leading 1.7 lb. water/kWh* moisture removal efficiency.
Contact air seals: Separate process and reactivation air streams to minimize leakage and improve performance.
Electrical controls: Simple automatic control system monitors and controls unit functions.
Automatic restart after power failure. Visual indicators and contacts for remote run and fault status. Elapse time meter. Auto/Manual selection switch with humidistat connection kit and optional low voltage humidistat.
Drive system: Continuous rotation, with simple drive belt arrangement and few moving parts.
Reactivation utility: Solid-state energy modulation of heater reduces energy consumption that optimizes desiccant media regeneration. Includes independent reactivation fan and high temperature protection.
Dehumidifier housing: Light and durable weld aluminum cabinet with hinged front access panel. Process and reactivation airflow insulation to reduce heat loss and condensation risk. Blower motors and control isolated from air streams, and fan guards provided for safety. Volume control dampers for adjusting process and reactivation air streams. Compact size for minimal space requirements and easy installation.

Manufacturer's Specifications:
Process volume: 75-150 SCFM
Process E.S.P: 0.75 W.G.**
Max reactivation volume: 55 SCFM
Reactivation E.S.P: 0.15 W.G.**
Max reactivation heater:
HC-150-I = 2.9kW @ 230 VAC
HC-150-R = 1.5kW @ 115 VAC

Utilities:
HC-150-I = 208-240V/1/60Hz
HC-150-R = 115V/1/60Hz/ 10%
Maximum FLA:
HC-150-I = 14.4A @ 240V/1/60Hz
HC-150-R = 15.5A @ 115V/1/60Hz
Max dBA: 75 (three feet from dehumidifier except in path of airflows)
Filters: Washable metal roughing filters
